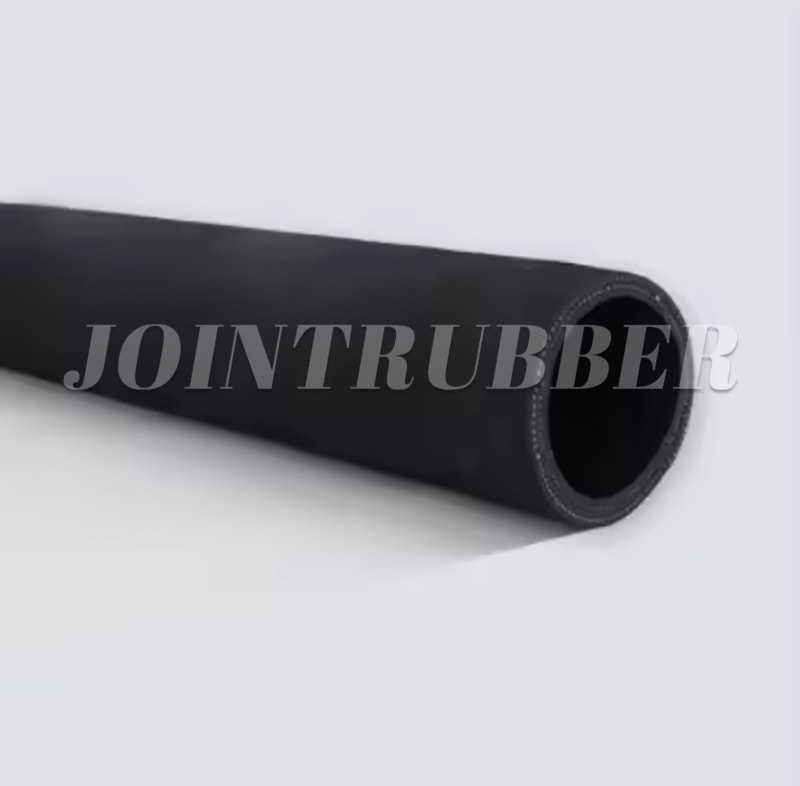

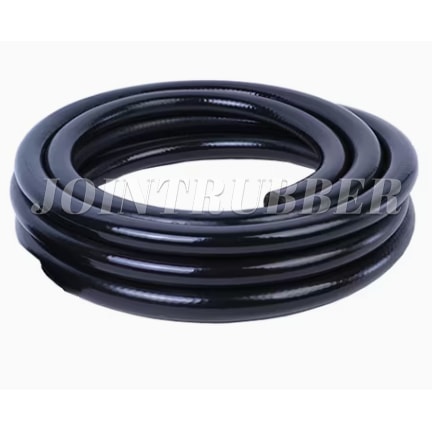

Water/Air hose

Features

Internal hose：Synthetic rubber
Covering：Synthetic rubber,resistant to oils,ozone

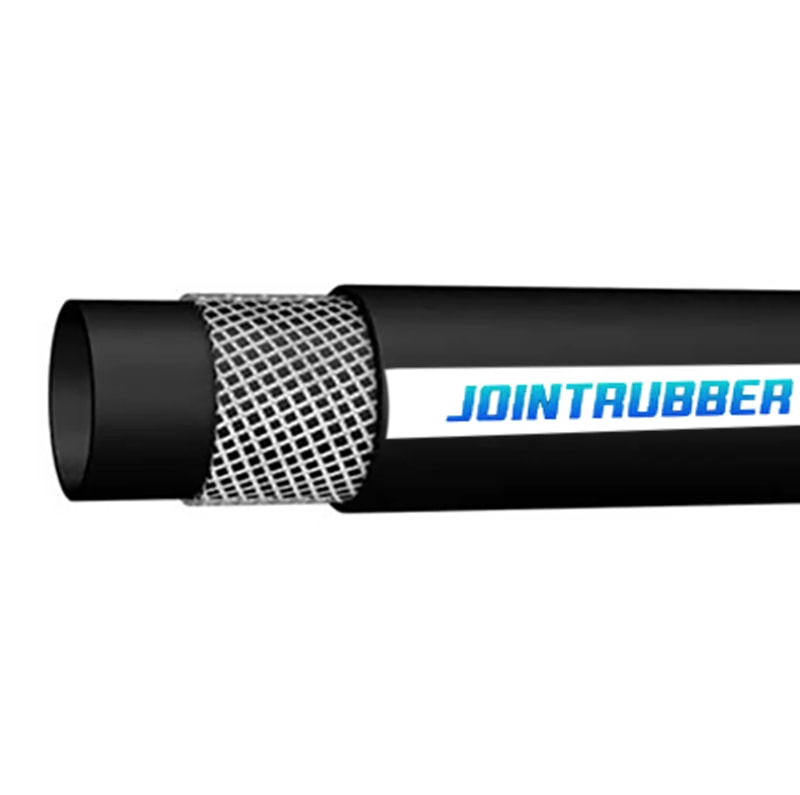

Reinforcement：1 Textile braided high tensile synthetic yarn.
Working Pressure：20 Bar /290 Psi
Operating temperature：-40℃~+100℃
Recommended fluid：Automotive Air Brake System: Tractor-Trailer Air Brake connections.
Water/Air Hose is suitable for Air,water delivery

Consult now

Technical Specifications


Inside Diameter		Outside Diameter	Working Pressure		Burst Pressure		Nominal Weight	Bending Radius	Length
inch	mm	mm	bar	psi	bar	psi	kg/m	mm	m
1/4	6	13	20	300	60	900	0.17	60	50 / 100
5/16	8	15	20	300	60	900	0.22	65	50 / 100
3/8	10	18	20	300	60	900	0.29	80	50 / 100
1/2	13	21	20	300	60	900	0.37	105	50 / 100
5/8	16	25	20	300	60	900	0.56	130	50
3/4	19	29	20	300	60	900	0.65	150	50
1	25	36	20	300	60	900	0.86	200	50
