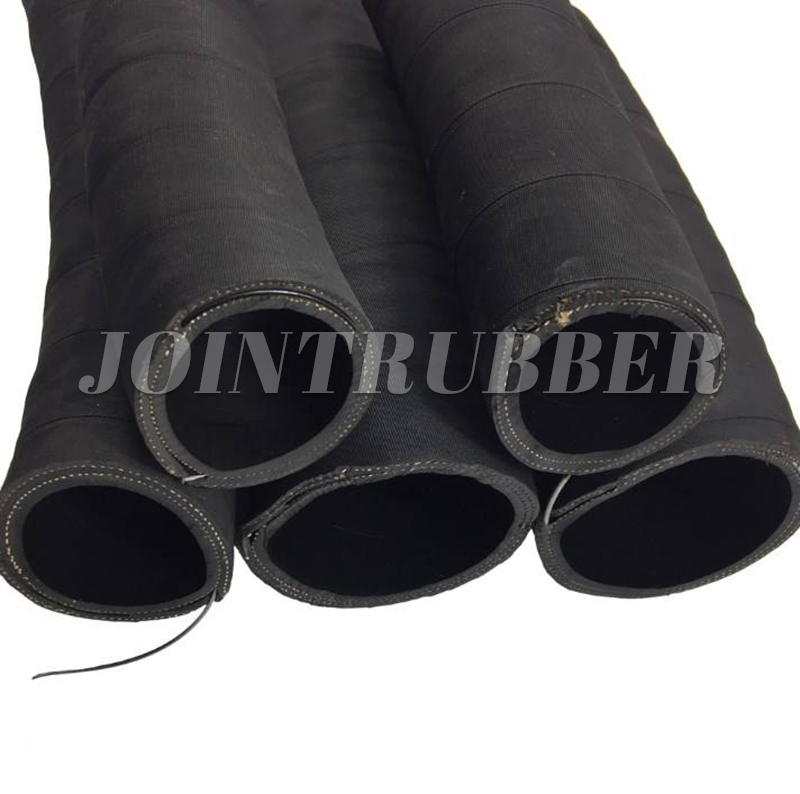

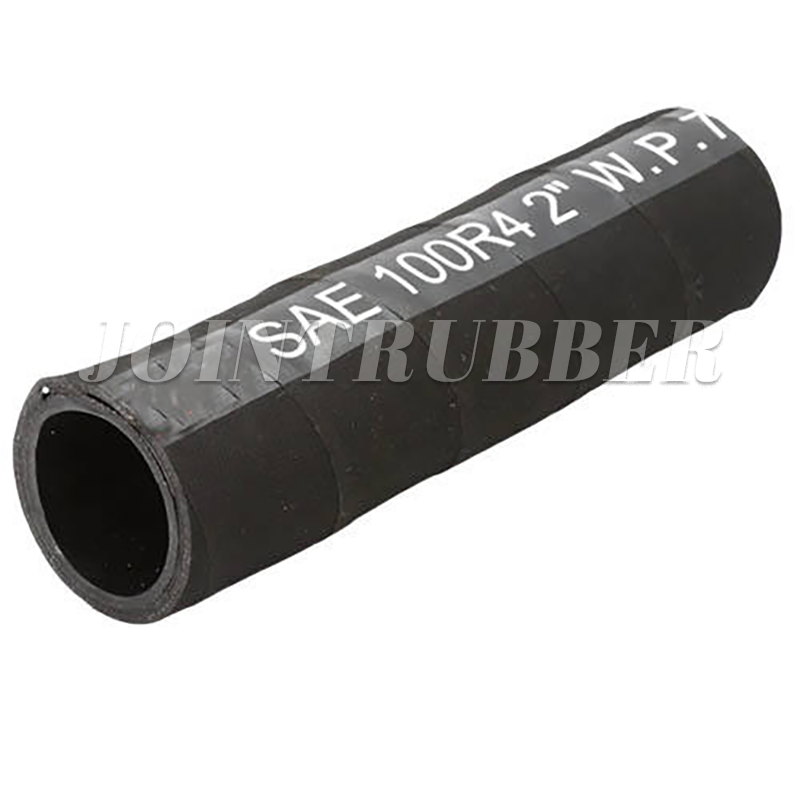

SAE 100R4

Features

Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Reinforcement: Multiple layers of fiber spiral and one helical wire
Safety factir: 4:1
Temperature range: From-40 to +80°C

Consult now

Technical Specifications


Hose ID		Hose O.D.	Working Pressure		Burst Pressure		Bend Radius	Length	Weight
In.	mm	mm	psi	MPa	psi	MPa	mm	m	kg/m
3/4	19	34.9	305	2.1	1210	8.4	125	40/60	0.92
1	25	41.3	250	1.7	1015	7.0	150	40/60	1.10
1 1/4	32	50.8	200	1.4	810	5.6	200	40/60	1.30
1 1/2	38	57.2	150	1.05	610	4.2	255	40/60	1.80
2	51	69.9	100	0.7	410	2.8	300	40/60	2.23
2 1/2	63	82.6	60	0.4	250	1.7	355	40/60	3.23
3	76	95.3	60	0.4	230	1.6	460	40/60	4.25
3 1/2	89	107.9	40	0.3	180	1.25	530	40/60	5.05
4	102	120.7	40	0.25	145	1.0	610	40/60	5.60
