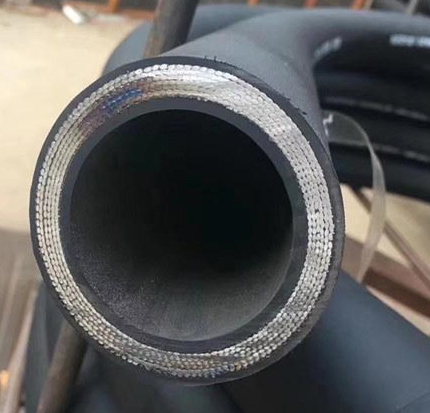

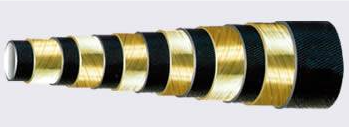

SAE 100R15 is a super-high-pressure multi-spiral steel wire hydraulic hose designed for the most rigorous heavy-duty hydraulic applications, offering higher pressure ratings than R13. It is constructed with a heat and oil-resistant synthetic rubber inner tube, ensuring compatibility with petroleum-based hydraulic oils, synthetic esters, polyglycols, and vegetable oils. The reinforcement uses four or six layers of high-tensile steel wire spirals (alternating directions), providing superior tensile strength, extraordinary pressure resistance, and excellent impulse performance (up to 6,000 psi / 42 MPa constant working pressure). The heavy-duty synthetic rubber outer cover delivers outstanding resistance to abrasion, weather, ozone, oil, and flame, with MSHA approval for mining applications. This hose operates reliably at -40°C to +121°C, maintaining flexibility and stability in extreme temperature conditions.

Applications: Specially designed for super-high-pressure hydraulic systems in logging equipment, mining machinery, oilfield equipment, heavy construction machinery, hydrostatic drives, injection molding machines, and large industrial hydraulic units. Ideal for applications requiring constant high pressure, high impulse resistance, and long service life in harsh environments。
